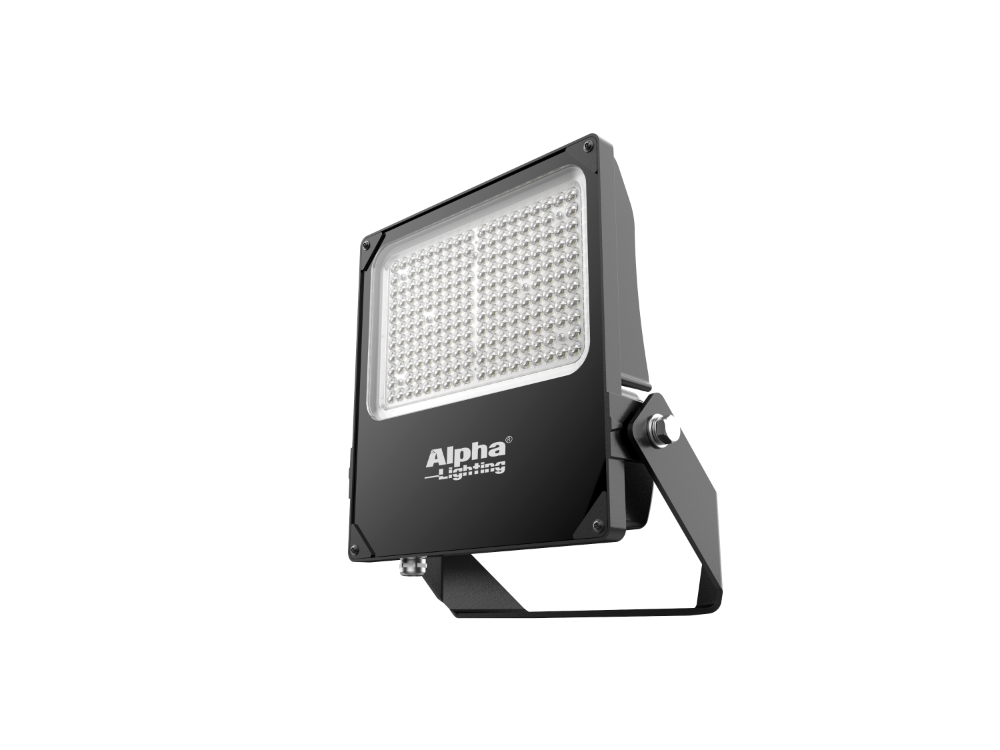

ALPHA LED PROJECTOR FL
is a universal outdoor LED luminaire with a wide range of applications and excellent light technical parameters. The variable optical system of the luminaire enables optimal light beam distribution. Maximally resistant construction made of extruded aluminium alloy with excellent temperature management parameters guarantees long luminaire lifetime. |
|||
| Street lights |
ALPHA LED PROJECTOR FL is a universal outdoor LED luminaire with a wide range of applications and excellent light technical parameters. The variable optical system of the luminaire enables optimal light beam distribution. Maximally resistant construction made of extruded aluminium alloy with excellent temperature management parameters guarantees long luminaire lifetime.
PRODUCT LINES
- 50 W
- 100 W
- 150 W
- 200 W
- 300 W
ADVANTAGES
- excellent lighting parameters of the variable optical system
- optical safety glass diffuser
- luminous efficasy flux 125 lm/W
- laboratory test lifetime over 60 000 hours/L70 according to IES LM-80
- possibility of mechanical adjustment of the required angle inclination of the luminaire
- excellent mechanical resistance to external weather influences
- protection IP66, CRI 70, CCT 3000 K/4000 K/5000K
Basic technical parameters ALPHA LED PROJECTOR FL
| CODE/TYPE | ALPHA LED PROJECTOR FL 50 W | ALPHA LED PROJECTOR FL 150 W |
|---|---|---|
| Power Input (W) | 50 W | 150 W |
| Rated Input Voltage (V) | 200-240V/50-60Hz | 200-240V/50-60Hz |
| Power Factor | 0,93 | 0,93 |
| Electrical Class | II | II |
| LED Source | PCB | PCB |
| Total luminous flux of the luminaire (lm) | 6200lm | 18750lm |
| CRI | ≥ 80 | ≥ 80 |
| Correlated Color Temperature CCT (K) | 5000K ( 3000K, 4000K, 5000K) | 5000K ( 3000K, 4000K, 5000K) |
| CCT change setting | NO | NO |
| Dimming DALI | YES/optional accessories | YES/optional accessories |
| Beam angle (°) | ASYM | SYM |
| IP Rating | 66 | 66 |
| IK Rating | – | – |
| Width | 267 | 360 |
| Depth | 228 | 302 |
| Height | 55 | 67 |
| Weight (kg) | 1,8kg | 3,9kg |
| Material | Tempered glass/Aluminium | Tempered glass/Aluminium |
| Luminaire construction color | White 9016 | White 9016 |
| Ambient temperature Ta (°C) | -30°C +50°C | -30°C +50°C |
| Lifetime (h) | 60 000 h/L70 | 60 000 h/L70 |
| Warranty | 5 years | 5 years |
Luminosity curves
