Industry LED luminaire
 |
 |
||
| Industrial lighting | Commercial lighting |

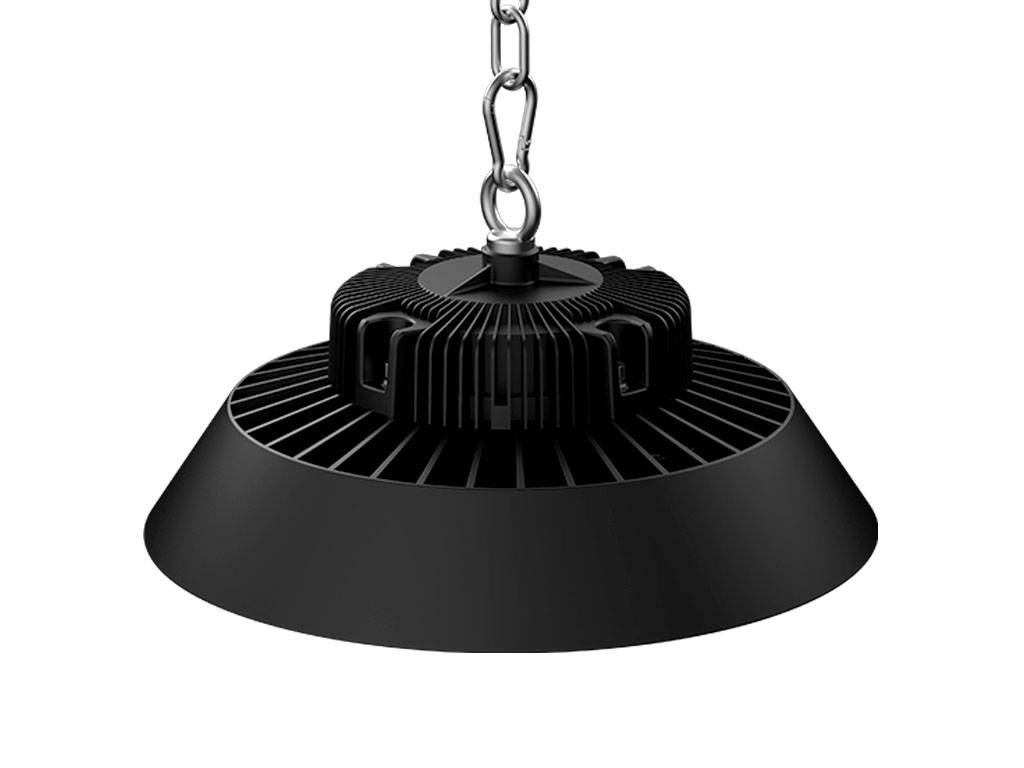

ALPHA HIGH BAY LED is a universal LED luminaire with a wide range of applications and excellent light technical parameters. The variable optical system of the luminaire enables optimal light beam distribution. Maximally resistant construction made of extruded aluminium alloy with excellent temperature management parameters guarantees long luminaire lifetime.
PRODUCT LINES
- ALPHA HIGHT BAY LED 50W – 300W
ADVANTAGES
- Modern design with hight lumen efficienty
- Excellent mechanical resistance to external weather IP 65
- Possibility of mechanical adjustment of the required angle inclination of the luminaire
- All-aluminum lightweight construction
- Internation control DALI
- Optional optics 60°, 90°, 120°
ALPHA Hight Bay LED is a universal LED luminaire with a wide range of applications and excellent light technical parameters. The variable optical system of the luminaire enables optimal light beam distribution. Maximally resistant construction made of extruded aluminium alloy with excellent temperature management parameters guarantees long luminaire lifetime.
PRODUCT LINES
- ALPHA HIGHT BAY LED 50W – 300W
ADVANTAGES
- Modern design with hight lumen efficienty
- Excellent mechanical resistance to external weather IP 65
- Possibility of mechanical adjustment of the required angle inclination of the luminaire
- All-aluminum lightweight construction
- Internation control DALI
- Optional optics 60°, 90°, 120°
Technical details of ALPHA HIGH BAY LED
| CODE/TYPE | ALPHA HIGH BAY LED |
|---|---|
| Width | 360 |
| Height | 204 |
| Power Input (W) | 150 |
| Rated Input Voltage (V) | 200-240 V/50-60 Hz |
| Power Factor | 0,93 |
| Electrical Class | A++ |
| LED Source | PCB |
| Total luminous flux of luminaire | 19500 |
| CRI | ≥ 80 |
| Correlated Color Temperature CCT (K) | 3000, 4000, 5000 |
| Dimming DALI | Yes |
| Emergency module | No |
| Beam angle (°) | 60, 90, 120 |
| IP Rating | 65 |
| IK Rating | IK08(Sklo), IK10 (PC Optiky) |
| Material | Aluminium |
| Luminaire construction color | Černá, bílá |
| Ambient temperature Ta (°C) | -40 ~ +50 ℃ |
| Lifetime (h) | 50 000 h/L70 |
| Warranty | 5 let |
Luminosity curves
